by Al Dawkins, KØFRP
CQC Member # 32

(Click on either "thumbnail" image for a larger view...)

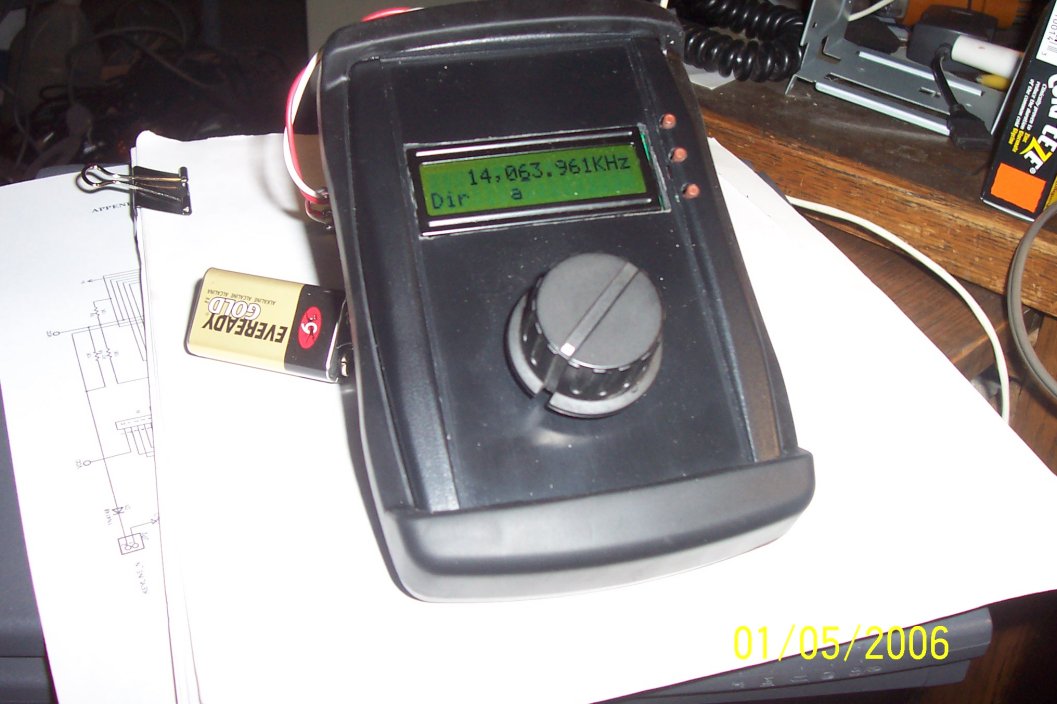

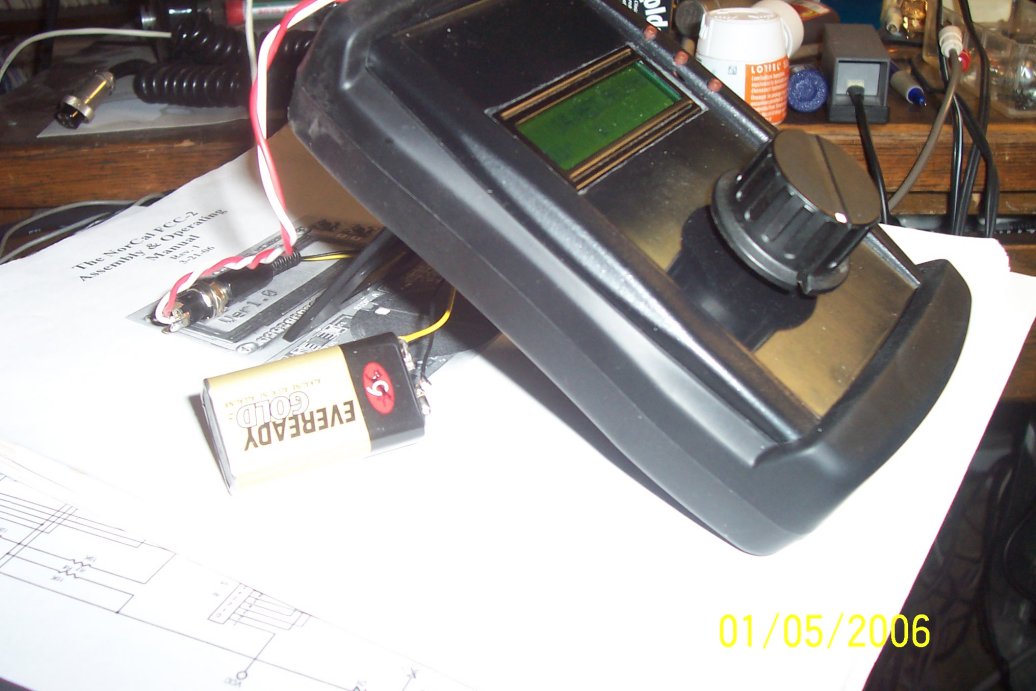

This is the Norcal FCC-1 frequency counter with the addon FCC-2. The Case is a PacTec Electronic Enclosure. It's a multimeter case with back stand built into the rubber boot that surrounds the case. It ws a very tight fit and I used a dremel tool to get it into the case. I still have to mount the input and output connectors. The FCC-2 transmits CW and RTTY with RTTY software to generate the Mark and Space. Output is about 10 to 25 MW. I am working on a 5-10 watt amp. The two kits are $35 each. The FCC-2 is a SMT kit.

• Complete FCC-1 Frequency Counter support
• Shaft encoder for frequency entry, Memory and Menu mode operations
• 4 pushbutton and shaft encoder user interface
• Dual VFOs
• Split operation
• VFO copy: A-> B, B->A
• VFO can be band limited or full range
• Fast T-R switching
• FSK (RTTY) support
• 10 programmable frequency memories, store and recall to/from either VFO
• Last band frequency used is stored in EEPROM – after 30 second dwell
• Programmable transmit IF offset
• Programmable receive IF offset
• Programmable transmit frequency scaling: 1 to 255 - per band
• Programmable receive frequency scaling: 1 to 255 - per band
• Programmable transmit frequency calculation per band:
• Direct
• VFO+IF
• VFO-IF
• IF-VFO
• Programmable receive frequency calculation per band:
• Direct
• VFO+IF
• VFO-IF
• IF-VFO
• Programmable transmit RTTY Mark frequency offset – 2125 Hz nominal
• Programmable transmit RTTY Space shift frequency – 170 Hz nominal
• Programmable receive RTTY Mark frequency offset
• Programmable shaft encoder pushbutton function
• DDS Calibrate mode
• Extensive Menu mode
• Computer-controlled contest keying

FCC-2 Specifications

Dimensions 			1.5” x 3.0” x 1.25” (HWD)
Weight 				1.2 oz.
Power Requirements 		30 mA in addition to FCC-1.
Inputs 				FCC-1 connection
				RS-232 compatible FSK input: TXD, RTS, Ground
Usable Frequency Range 		DC to >20 MHz
Outputs 			1. Lo-Z:
				50 Ohm, 20KHz – 18 MHz output (-3dB) 3.0mw (4.7dBm) to 25mw (14 dBm) @ 1MHz typ.
				Usable from 10KHz to 21 MHz.
				2. Hi-Z:
				600 Ohm, DC-18 MHz output, 580mVpp typical.
				3.Key Out:
				Active low, open collector, computer controlled via RTS
DDS Lowpass Filter  		7th order Elliptic
T-R turnaround delay  		1mS max
Frequency Memories  		10, user programmable
Band Memories  			13, frequency is automatically stored after 30 second dwell
Receive IF Offset  		0 to >268 MHz
Transmit IF Offset  		0 to >268 MHz
Receive Prescale Factor 	1 to 255, programmable per band
Transmit Prescale Factor	1 to 255, programmable per band
FSK Mark Frequency Offset  	0 to >268MHz
FSK Space Frequency Offset  	0 to >268MHz
Supported Bands  		160m, 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, 6m, 2m, Direct
Controls  			Shaft Encoder with built-in pushbutton
Encoder Pushbutton  		Programmable: Decade Increment, VFO A/B select
